Equipment Introduction:
The Ultra-Fine Roll Crusher is a high-efficiency grinding equipment for clay brick production. It utilizes two precision rollers with micron-level gap adjustment to crush raw materials (e.g., clay, shale) into uniform particles of 0.5-3mm, significantly improving the quality of subsequent mixing and extrusion processes.
Technical Data:
| Model | Capacity(t/h) | Roller size(mm) | Input size(mm) | Out put size(mm) | Dimension(mm) | Weight(t) | Power(kW) |
| SGS800*800 | 30-50 | Φ800*800 | ≤10 | 0.8-1.5 | 4000*4000*2200 | 18 | 75+55 |
| SGS1000*1200 | 40-80 | Φ1000*1200 | ≤10 | 0.8-1.5 | 4500*4800*2500 | 31 | 132+90 |
Features:
1. Ultra-Fine Crushing: Unique roller surface texture + high-pressure grinding for output fineness ≥0.5mm.

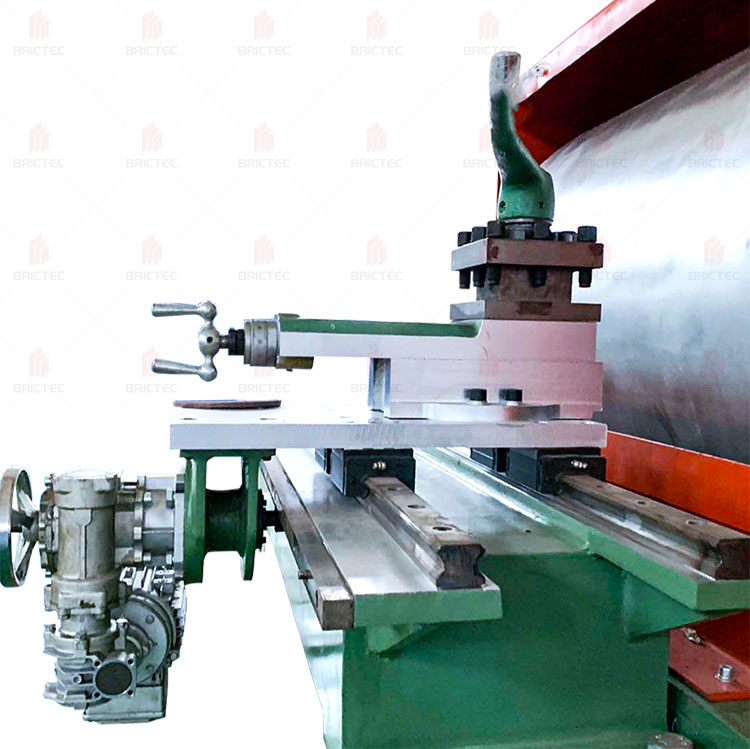

2. Precision Gap Control: Hydraulic/servo system adjusts roller gap (0.1-5mm) with ±0.05mm accuracy.
3. Wear-Resistant Rollers: Tungsten carbide or ceramic-coated rollers, 3x longer lifespan than standard alloy rollers.
4. Fully Enclosed Design: Dust extraction ports comply with environmental standards.
Function:
Replaces traditional two-stage crushing (jaw crusher + hammer crusher) with single-pass ultra-fine grinding, preventing over-crushing and ensuring optimal clay gradation to minimize brick drying cracks.
Advantages:
1. 30% Energy Saving: Power consumption ≤3.5kWh per ton, lower than traditional crushing lines.
2. Uniform Output: 90% particles in 0.5-2mm range, reducing extruder jamming risks.
3. Low Maintenance: Modular roller design allows replacement within 2 hours.
Key Technical Terms:
Ultra-Fine Roll Crusher
Roller Gap Adjustment
Tungsten Carbide Roller Sleeve
Particle Gradation
